Automotive test solutions

Introducing automotive test solutions that meet the needs of developing, testing and calibrating automotive LiDAR and camera/imaging sensors. Labsphere products are certified to the highest standards with NMI(National Metrological Institute) traceability to provide reliable results.

*Otsuka Electronics Korea is an official distributor of Labsphere, a global photonics company in the United States. You can also inquire about Labsphere's products other than the models presented.

 Product line

Measure any light source

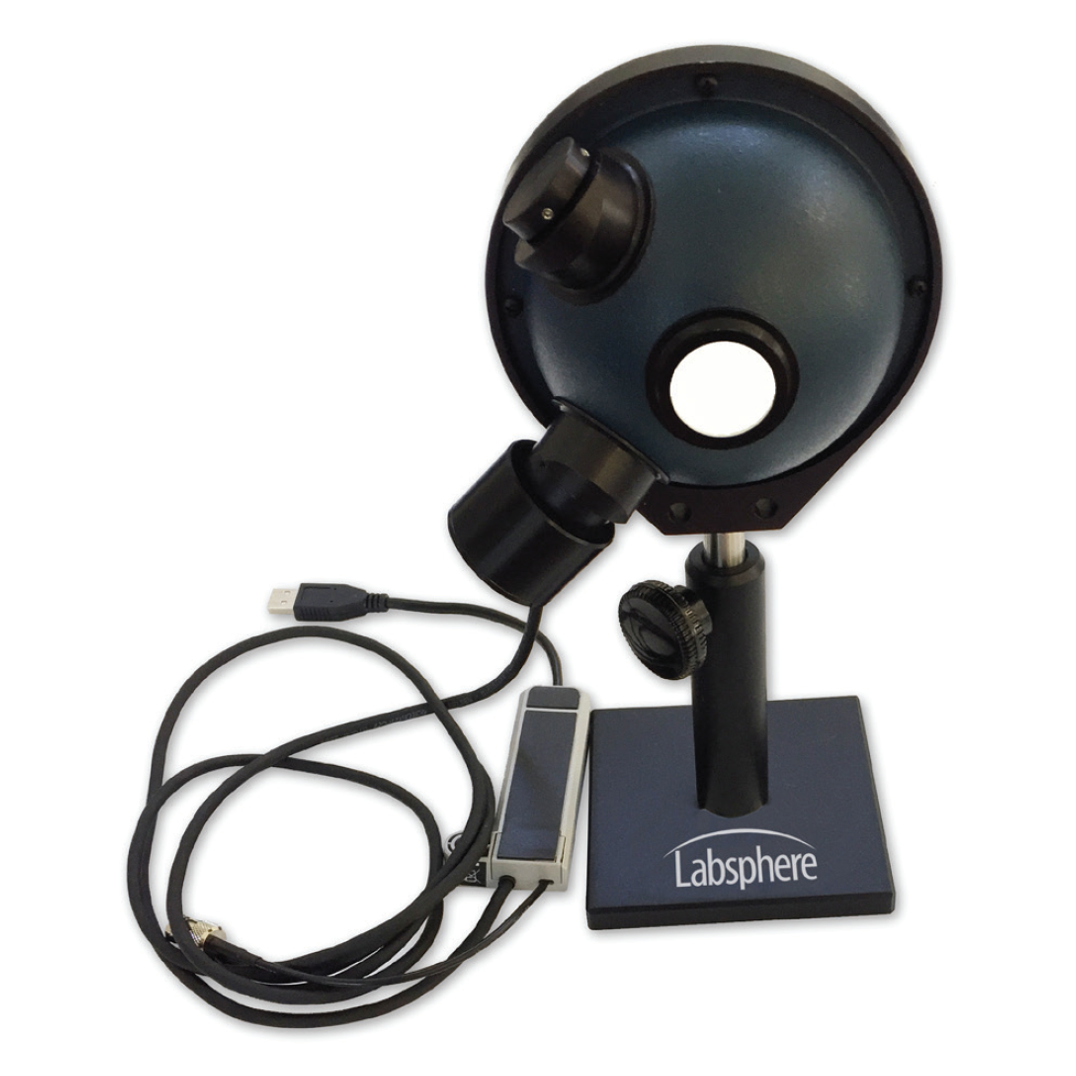

LPMS(Laser Power Measurement System)

Light measurement systems for LiDAR system validation

LiDAR developers need to characterize the power output of their LiDAR emitters. Labsphere engineers industry leading light measurement systems to characterize VCSELs and laser sources at every step in the development and production cycle.

Industries

  • Aerospace & Defense
  • Research & Development
  • Industrial Photonics
  • Medical & Lifescience
  • Telecommunications

Applications

  • Laser measurement
  • Optical power(watts)

Specifications

  • LPMS assures an accurate, reproducible method of determining the total power from a collimated or divergent laser or laser diode.
  • Each system consists of a laser power measurement sphere, post, post holder and base assembly, a detector assembly, and multi-wavelength calibration.
  • Specifically designed for laser applications, the spheres are ideal for measuring the total power of a beam of optical radiance.
  • Because of the unique geometry of the sphere, beam power measurements are independent of beam polarization, and are insensitive to beam alignment.
  • The attenuation which accompanies the sphere throughput also alleviates detector saturation.
  • The systems can be used with an open port and can be apertured with an array of optional fiber adaptors for laser diode modules or port reducers.
  • A second detector port gives the user the flexibility to add an additional detector assembly for broader spectral sensitivity, or add a spectrometer for spectral characterization.

Create any spectrum

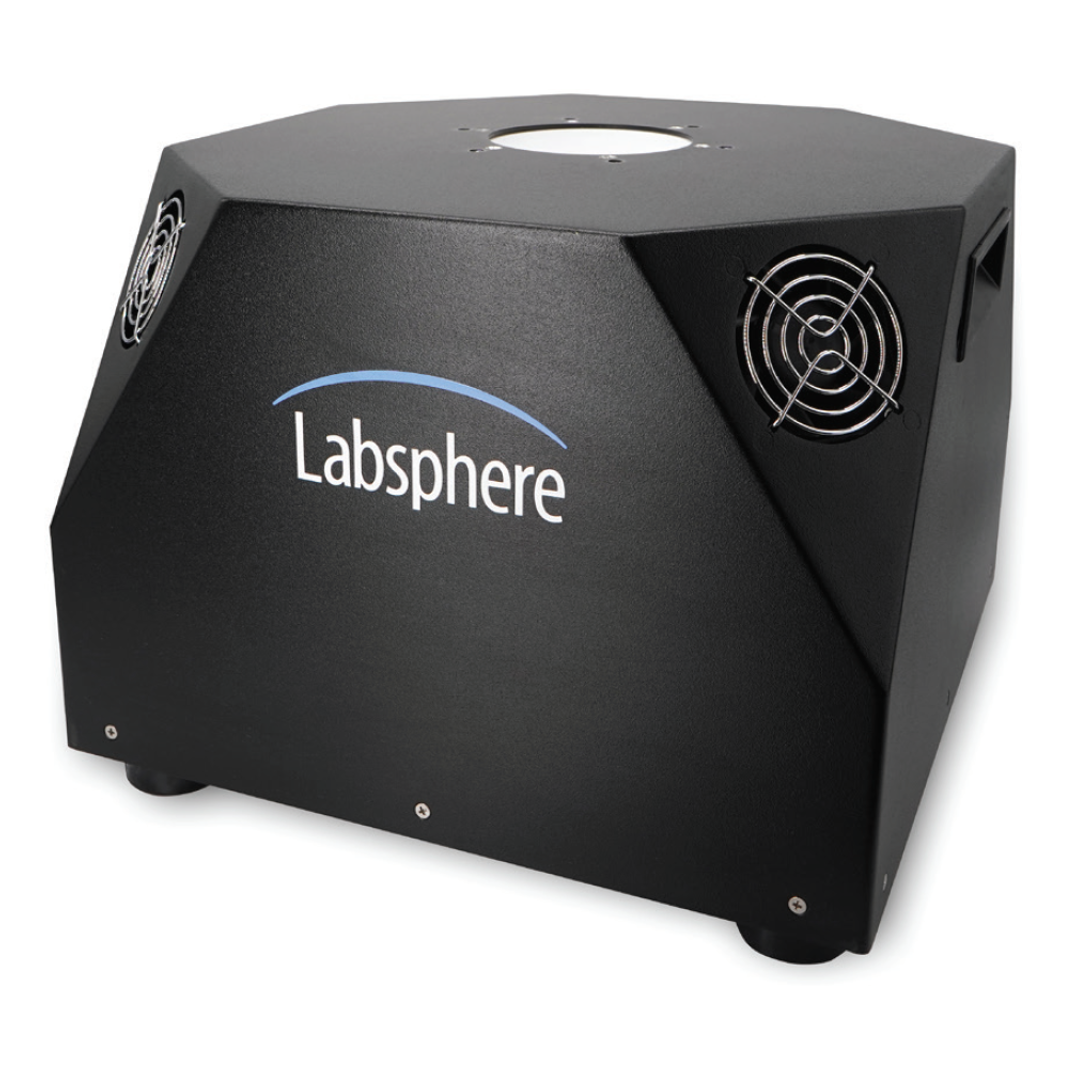

Spectra-FT

Reference radiance sources for image sensor testing

ADAS automobiles rely upon demanding image and data driven decisions to keep operators and pedestrians safe. Labsphere team of experts in radiometry and photometry develop comprehensive reference radiance sources for the characterization of image sensing systems. From color tunable sources with unprecedented spectral matching to high dynamic range radiance sources, Labsphere continues to advance the technology of light.

Industries

  • Automotive & Transportation
  • Mobile
  • Image Sensors
  • Industrial Photonics

Applications

  • Automotive camera calibration
  • Ambient light sensor calibration
  • CMOS image sensor test
  • Lens testing
  • Spectrum/Illuminant simulation

Specifications

  • Spectra-FT uses discrete solid-state lights to create unlimited number of tunable spectral radiance references from a single integrating sphere uniform source.
  • Application specific 4 model lines covering the VIS, VIS-NIR and SWIR InGaAs spectral ranges
  • User spectral optimization
  • Create weighted spectrum by combining light and reflectance
  • Built in spectroradiometer provides spectral radiance and color monitor
  • Recalibration and recharacterization features ensure long life performance and minimal downtime
  • Traceable calibrations with integrated QTH calibration lamp and spectrometer

Reflect any wavelength

Permaflect® Targets

Diffuse reflectance materials and coatings for range characterization

LiDAR sensing systems require greyscale reference reflectance targets to characterize range sensitivity. Labsphere continues to develop and fabricate industry leading diffuse reflectance solutions to meet today’s unique application challenges such as LiDAR system characterization.

Industries

  • Automotive & Transportation
  • Aerospace & Defense
  • Image Sensors
  • Consumer Electronics
  • Industrial Photonics

Applications

  • Automotive Sensor Calibration
  • Airborne Calibration
  • Image Sensor Test
  • Coatings & Materials

Specifications

  • Permaflect® diffuse reflectance coatings maintain their appearance under a wide variety of lighting environments and have uniform spectral response.
  • They are thermally and physically durable, thermally color stable, and UV light stable.
  • Permaflect® has no gloss, no polarization, and no fluorescence which provides accurate and uniform results.
  • LiDAR Targets are a complete reference reflectance solution for accurately testing range sensitivity at LiDAR wavelengths and accelerating your LiDAR system production.
