Portable high precision thickness meter
Want measure it “right now” but it couldn’t
Different result for each person
Unreliable measurement accuracy
Don’t you have the experience like these when thickness measurement?
• Smart thickness meter solves your problems with the following characteristics.
Handy - portable at any production site
• Easy- anybody useable
• Accuracy- small but high precision
• Nondestructive- measurement even for shaped sample

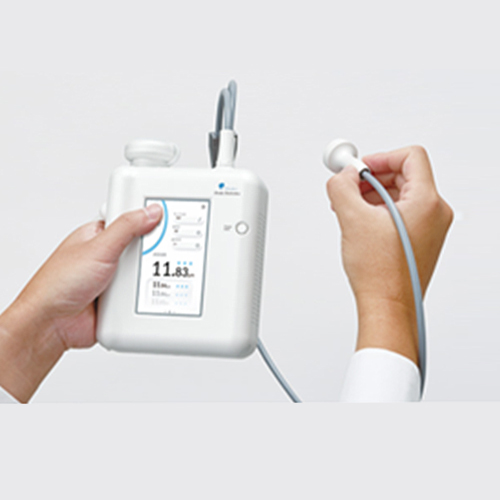

ใPortable- handyใ 1.1kg, lightweight and easy to carry
ใ Simple operation, precise measurementใ Min. 0.1ใ measurable
ใNondestructive · Noncontact measurementใ without sample damage
ใVariety of UtilitiesใVarious materials can be measured such as glass and plastics
๏ผ. Handy-portable at any production site
Advantage : Carry it at anywhere!
Reason : Miniature spectrometer, battery driven type employed
Scene๏ผ๏ผ Outside of the company
Scene๏ผ๏ผOn the production line

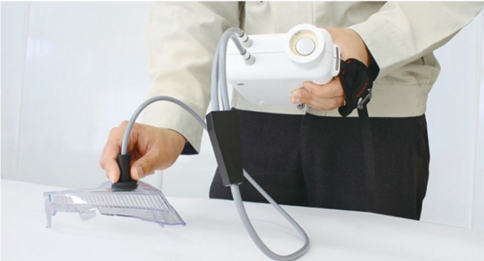

Scene๏ผ๏ผOn the heavy industry line
2. Accuracy- small but high precision
Advantage : 0.1ใ thickness measurable!

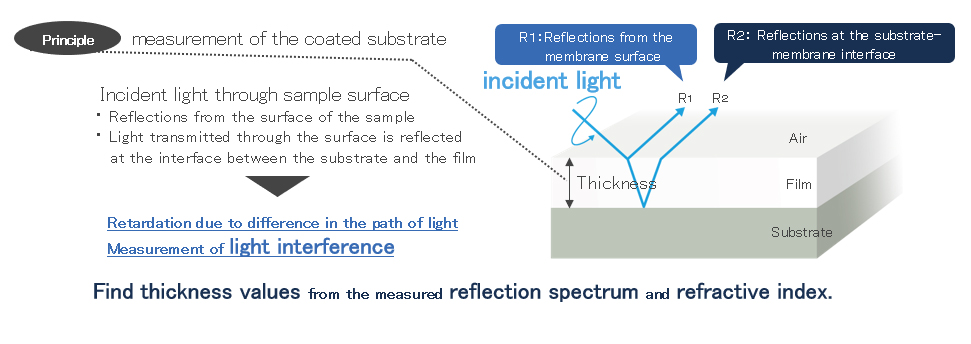

Reason : Spectroscopic Interference principle applied
3. Various sizes and shapes samples can be measured
Advantage :
โ Large size sample available
โก Non-destructive methods
โข Various shapes measurable
Reason : Various probe types selectable depend on sample types or shapes
No problem even if the sample size is
bigger than desk
4. Nondestructive- measurement even for shaped sample
Advantage :
โ Various shape samples available
โก Large size sample
โข Non-destructive methods
Reason : Probe selectable as of the sample characteristics
Probe โ ๏ผBasic probe
Use for flat shape sample
Ex.๏ผ film, simple shape
Probe โก๏ผPen-shape probe Option
Use for Narrow or curvy sample
Ex.๏ผSamples with narrow or uneven measurement areas
Probe โข๏ผNon-contact stage Option
Use for a sample shouldn’t be contact necessary
Ex.๏ผliquid form (PR, etc.), semiconductor wafers
| Principle of measurement | Reflective spectroscopy (optical interference), non-destructive measurement |
| Range of measurement | 1~50μm(display range : 0.8~60μm) |
| Repeatability | 2.1σโฆ0.01μ๏ฝ๏ผSiO2: ๏ผμ๏ฝ๏ผ |
| Measurement time | Less than 1sec |
| Layer | 1 layer |
| Spot size | Less than Φ1๏ฝ๏ฝ |
| Weight | About 1.1kg |
| Size | About 138(W)×198(D)×61(H)mm โปprotrusion included |
| Power | Voltage ๏ผ AC100-240V |
| Frequency๏ผ 50/60Hz | |
| Power consumption ๏ผ 35VA | |
| IP/IK code | IP30 / IK06 |
