Headlamp aimer

(Absolute Screen Aimer)

Headlamp aimer

Products > Automotive evaluation > Standard set-up process>ASA-1000

ASA-1000

ASA-1000 is a device used by the manufacturer of the finished vehicle or the headlamp manufacturer (the finished vehicle environment)

Upgrade is also available for new models (new lamps).

 Features
  • It can be used by manufacturers of finished cars and lamps for the aiming of various light sources.

    -. Both low beam, high beam available

    -. Global aiming standard response using various algorithms

    -. Selection of the aiming standard (master car) with sufficient testing before setting the run target

    -. Securing repeatability by checking the physical vehicle center using a laser (vs. visual aiming)

       (Minimize impact on human error )

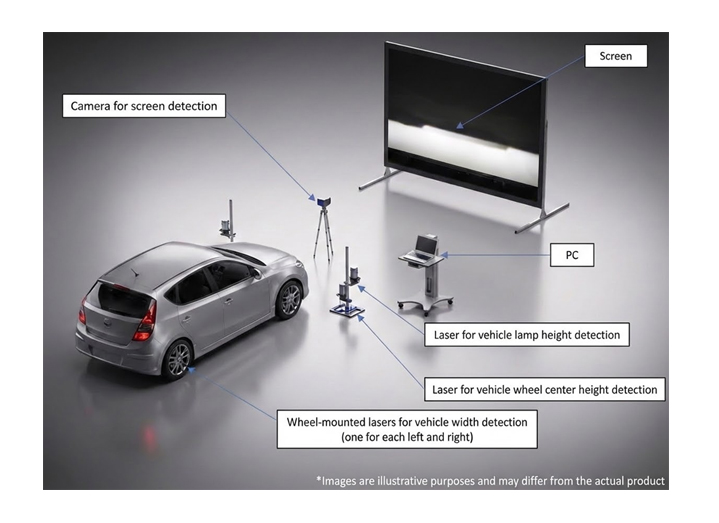

    -. Simple configuration / reliable data / easy and fast setup with detectors and screens

    -. Darkroom environment (*Customer prepares space including darkroom)

 Specifications
Light Detect unit
Optical field of viewhorizontal: ± 4° / vertical: ± 3.5°
Light axis detection repeatability2σ < 0.1°
Luminous intensity range100 ~ 125,000cd
Luminous intensity accuracy± 10%
