Contact-type Spectroradiometer | Otsuka Electronics Korea

Part	Item		Specification	Comment
Point (Main)	Working Distance (W/D)Measurement Quantities		Luminance, Chromaticity	XYZ, xyY, Luv

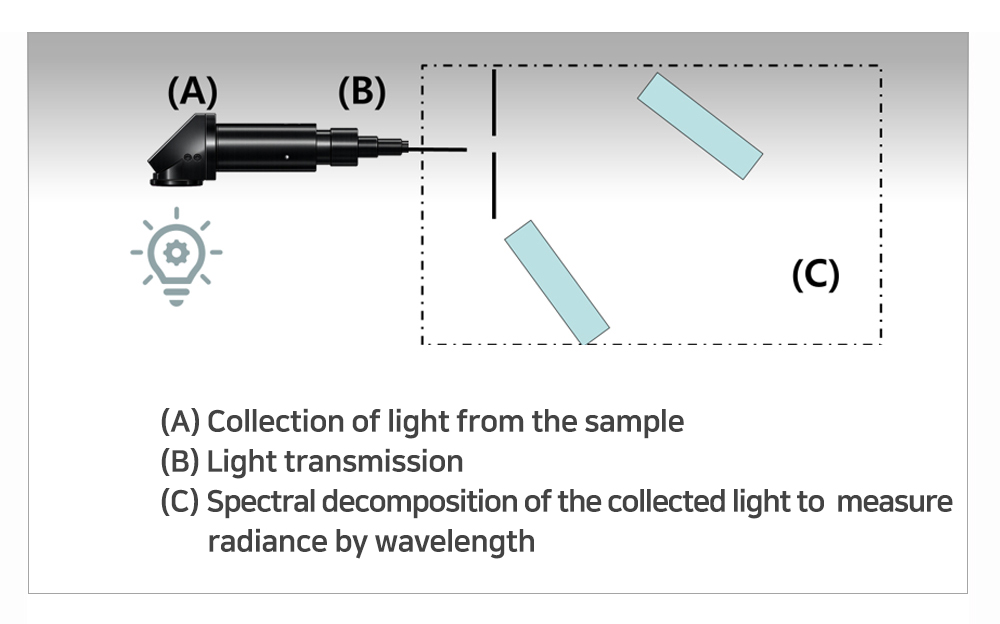

	Measurement Principle		Spectroradiometer
	Measurement Area		Ø16 mm	±0.3 nmSubject to change to improve performance
	Working Distance		0mm ~ 10mm	Subject to change by mutual agreement
	Luminance	Range	0.0050-15,000.0 cd/m2	Our standard light source (white, 6500K) is used as the reference
		Accuracy (white)	±4.0% @ 0.0050-0.0090 cd/m2 ±2.0% @ 0.0100-15,000.0 cd/m2
		Repeatability (2σ)	≤2.0% @ 0.0050-0.0090 cd/m2 ≤1.0% @ 0.0100-0.0990 cd/m2 ≤0.3% @ 0.1000-15,000.0 cd/m2
	Chromaticity	Range	0.0100-15,000.0 cd/m2	Our standard light source (white, 6500K) is used as the reference
		Accuracy (white)	±0.002 @ 0.0100-15,000.0 cd/m2
		Repeatability (2σ)	≤0.003 @ 0.0100-0.9990 cd/m2 ≤0.001 @ 1.0000-15,000.0 cd/m2
	Measurement Speed		4-30 times/sec	Low Luminance : 4 times/sec High Luminance : 30 times/sec
ETC	Dimension (㎜)		어테치먼트 159[L] x 49W] x 44[H] Spectrometer 309[L] x 330[W] x 139[H]	Subject to change to improve performance
	Weight (㎏)		어테치먼트 ≒ 1.0 Spectrometer ≒ 7	Subject to change to improve performance
	Cooling Type		Peltier type
	Enviroment	Electricity	AC 240V, 50-60㎐, 250VA
		Temperature	10℃ - 30℃
		Ambient Illumination	환경조도 ≤ 0.2lx	There must be no light sources other than the object being measured in the vicinity of the measurement point.
		Connection	TCP/IP	PC Requirements - OS : 64bit - Memory : 32Gb↑ - HDD : 100Gb - PC Slot : LAN Card [Recommended by Intel]

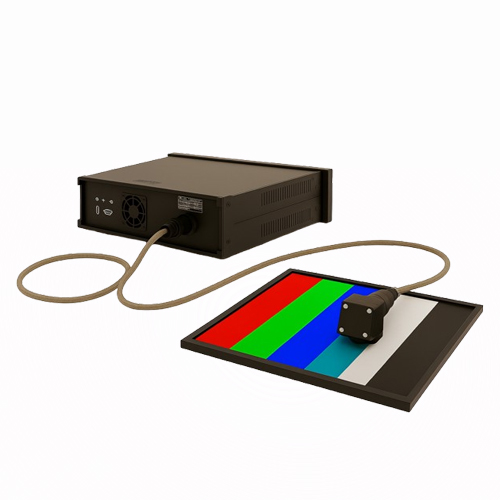

Spectroradiometer
